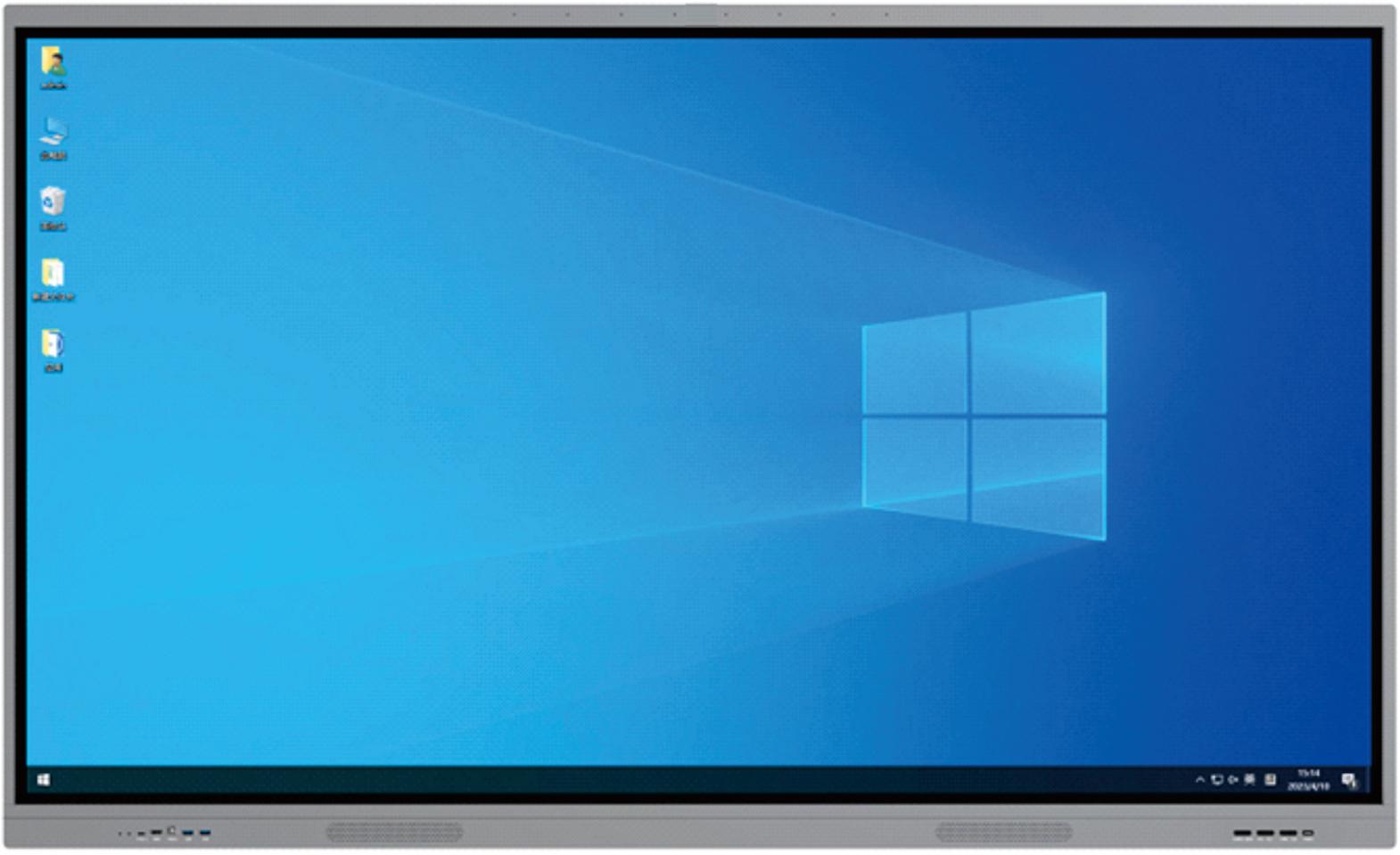

4K Interactive Conference Display
4K infrared touch displays for meetings, presentations and teaching. Available in multiple sizes and camera configurations, with optional OPS computers.
Categories:
productDetails.keySpecifications
- Screen Sizes
- 55 / 65 / 75 / 85 / 86 / 98 inch
- Resolution
- 4K UHD · 3840 × 2160
- Touch
- 20-point infrared; selected models support more
- Operating System
- Android 12 / 14, by configuration
- Memory / Storage
- 4 / 8 GB RAM · 32 / 128 GB storage, by configuration
- Camera Options
- 65 inch: 13 MP / 48 MP / AI models
- Wireless Connectivity
- H/H1: dual-band Wi-Fi + Bluetooth 5.0
- OPS Computer
- Optional · confirm configuration when ordering
86 inch is available in the H/H1 standard range. Specifications and available options vary by size and configuration; see the full specifications below.
productDetails.fullSpecificationsproductDetails.specificationSectionsproductDetails.expandproductDetails.collapse
65-inch Configuration Comparison
These are separate configurations. The no-camera option and H1 models use different hardware; confirm the required configuration when ordering.
| Configuration | System, Processor & Memory | Camera & Microphones |
|---|---|---|
| No-camera configuration | Android 14 · quad-core A73 1.5 GHz · 4/8 GB RAM, 32/128 GB storage options | No camera; built-in microphones not specified |
| H1 standard | Android 14 · octa-core A55 1.2 GHz · 4 + 32 GB | Built-in camera and microphones not specified |
| H1 · 13 MP | Android 14 · octa-core A55 1.2 GHz · 4 + 32 GB | 4K / 105° · 8-microphone array, 8 m pickup |
| H1 · 48 MP | Android 12 · octa-core A55 1.2 GHz · 4 + 32 GB | 4K / 115° · 8-microphone array, 8 m pickup |
| H1 · AI camera | Android 12 · octa-core A55 1.2 GHz · 4 + 32 GB | 48 MP / 4K / 115° · 8-microphone array, 8 m pickup · AI voice recognition |
No-camera configuration
- System, Processor & Memory
- Android 14 · quad-core A73 1.5 GHz · 4/8 GB RAM, 32/128 GB storage options
- Camera & Microphones
- No camera; built-in microphones not specified
H1 standard
- System, Processor & Memory
- Android 14 · octa-core A55 1.2 GHz · 4 + 32 GB
- Camera & Microphones
- Built-in camera and microphones not specified
H1 · 13 MP
- System, Processor & Memory
- Android 14 · octa-core A55 1.2 GHz · 4 + 32 GB
- Camera & Microphones
- 4K / 105° · 8-microphone array, 8 m pickup
H1 · 48 MP
- System, Processor & Memory
- Android 12 · octa-core A55 1.2 GHz · 4 + 32 GB
- Camera & Microphones
- 4K / 115° · 8-microphone array, 8 m pickup
H1 · AI camera
- System, Processor & Memory
- Android 12 · octa-core A55 1.2 GHz · 4 + 32 GB
- Camera & Microphones
- 48 MP / 4K / 115° · 8-microphone array, 8 m pickup · AI voice recognition
Display & Touch
- Supported Sizes
- 55, 65, 75, 85, 86, 98 inch (H/H1 standard); 55, 65, 75, 85, 98 inch (no-camera configuration).
- Resolution
- 3840 × 2160 (4K)
- Brightness
- H/H1 standard: ≤300 cd/m² (55/65), ≤350 cd/m² (75/85/86), ≤400 cd/m² (98). No-camera: 300 cd/m² (55), 350 cd/m² (65/75), 380 cd/m² (85), 420 cd/m² (98).
- Touch Technology
- Infrared multi-touch; H/H1: 20 points. No-camera: 20 points (55 inch), 20 or more (65/75/85/98 inch).
- Display Ratio
- 16:9
- Contrast Ratio
- H/H1 standard: 1200:1. No-camera: 3000:1 (55 inch), ≥4000:1 (65/75/85/98 inch).
- Refresh Rate / Viewing Angle
- 60 Hz / 178°
- Display Protection (H/H1 Standard)
- Anti-glare tempered glass: 3 mm (55/65 inch); 3.2 mm (75/85/86 inch); 4 mm (98 inch).
- Touch Performance (H/H1)
- Driver-free; response ≤5 ms; ±2 mm accuracy across at least 90% of the touch area; touch coordinates 32767 × 32767.
System & Collaboration
- Configuration Options
- H/H1 standard displays; separate no-camera displays; 65-inch 13 MP, 48 MP and AI camera configurations. Specifications vary by configuration; camera options are not standard on every size.
- Processor
- H/H1: octa-core Cortex-A55, 1.2 GHz, Mali-G52 MC2 600 MHz GPU. No-camera: quad-core Cortex-A73, 1.5 GHz, Mali-G52 MC1 GPU.
- Compatible OS
- H/H1 standard: Android 12 (55 inch), Android 14 (65/75/85/86/98 inch). No-camera: Android 14. See camera options for 65-inch camera models.
- Storage
- H/H1: 4 GB RAM + 32 GB storage. No-camera: 55 inch 4 GB + 32 GB; 65/85/98 inch 4/8 GB RAM and 32/128 GB storage options; 75 inch 4/8 GB RAM, 128 GB storage option. Confirm available combinations.
- Collaboration Features (H/H1)
- Wireless phone screen sharing, one-touch screen recording and whiteboard insertion of video, browser content, images and presentations.
- OPS Computer
- Optional OPS computer configurations; confirm the processor, memory, SSD and Windows version when ordering. OPS hardware is configuration-dependent.
Camera & Audio
- Camera Options (65-inch H1)
- 13 MP: 4K, 105° wide angle, Android 14. 48 MP: 4K, 115° wide angle, Android 12. AI: 48 MP, 4K, 115° wide angle, AI processing and voice recognition, Android 12.
- Microphones (65-inch H1 Camera Models)
- 8-microphone array, 8 m pickup and echo cancellation; camera and microphone functions support Android and Windows.
- Audio
- H/H1: 2 × 10 W speakers, 8 Ω.
Ports & Connectivity
- Input Interfaces
- H/H1 rear board: RS232 ×1, PC TOUCH 2.0 ×1, HDMI IN ×1, RJ45 ×1, USB 2.0 ×2, Coaxial ×1, LINE OUT ×1, TF card ×1. Front: USB ×2, Type-C ×1, HDMI IN ×1, TOUCH ×1.
- Ports (No-camera Configuration)
- Rear: MIC IN ×1, OPTICAL OUT ×1, HDMI IN ×2, TOUCH OUT ×1, USB 3.0 ×1, USB 2.0 ×1, RS232 ×1, LINE OUT ×1, RJ45 ×1. Front: Type-C ×1, HDMI IN ×1, TOUCH ×1, USB 3.0 ×2.
- Network
- H/H1: 2.4/5 GHz Wi-Fi, Bluetooth 5.0 and RJ45. No-camera 65/75/85 inch: Wi-Fi 6, Bluetooth 5.4 and RJ45.
Dimensions, Power & Installation
- Dimensions (H/H1 Standard)
- 55: 1258 × 770.5 × 81.3 mm; 65: 1483.2 × 896.9 × 98.7 mm; 75: 1705.4 × 1020.9 × 97.8 mm; 85/86: 1951.6 × 1160.1 × 97.8 mm; 98: 2215 × 1314.1 × 93.4 mm.
- Packing Dimensions (H/H1 Standard)
- 55: 1378 × 190 × 904 mm; 65: 1580 × 190 × 990 mm; 75: 1795 × 205 × 1137 mm; 85/86: 2040 × 205 × 1255 mm; 98: 2380 × 328 × 1462 mm (1570 mm with wheels).
- Weight
- H/H1 standard net / gross: 55 inch 27 / 32 kg; 65 inch 30 / 41.5 kg; 75 inch 42.5 / 54 kg; 85/86 inch 54.5 / 69 kg; 98 inch 87 / 121.5 kg.
- Net / Gross Weight (65-inch Camera Models)
- 13 MP: 30 / 41.5 kg. 48 MP and AI: 40 / 48 kg.
- Power Consumption
- H/H1 standard maximum: ≤110 W (55), ≤135 W (65), ≤195 W (75), ≤285 W (85/86), ≤440 W (98); standby ≤0.5 W. No-camera maximum, excluding OPS: ≤110/135/195/286/505 W for 55/65/75/85/98 inch respectively.
- Installation
- H/H1: wall-mount bracket included; mobile stand optional.
- Operating Temperature
- H/H1: indoor, 0–40°C; 10–90% RH, non-condensing.
Available Variants
55 inch
65 inch
75 inch
85 inch
86 inch
98 inch
Related Products
32-inch 4K Mobile Smart Display
A movable Android smart display with 4K resolution, 10-point touch, a built-in camera and battery power for entertainment, learning, fitness and video calls.

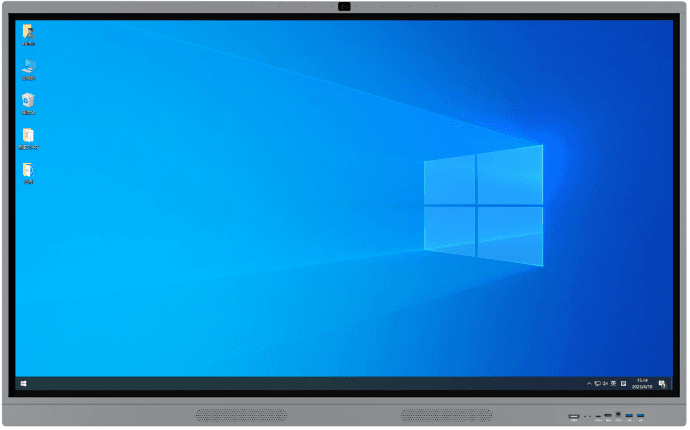

infrared liquid crystal all-in-one machine
